Session State Caching

This guide walks you through how to implement a session state cache using VMware GemFire and Spring Boot for VMware GemFire.

When should I use a session state cache?

Session state caching is useful for storing data associated with an HTTP session. Storing this data in a cache allows it to be retrieved quickly and persisted across log-ins. Some examples where this might be useful include:

Shopping cart entries
User preferences (name, site theme, etc.)
Single Sign On (SSO) credentials
Site Navigation History
etc.

How does session state caching work?

When a user connects to a website that utilizes sessions, an HTTP session is created.

In our example the Spring Session library takes care of managing the user session. When a user connects, a unique ID for the session is generated and stored as a cookie in the user’s browser. On subsequent requests, the cookie is sent to the server, identifying the session.

The session UUID is used as a key in a data store holding information associated with the session (see examples of session data above.) The data store can be a traditional database, but this can lead to performance issues when there is a large volume of users, or user data, or both. A cache can improve performance in these cases.

What you’ll need

To complete this guide you need:

The Session State example
JDK 8, 11, or 17. JDK 17 is required to use Spring Boot 3.0 or higher.
Spring Boot 2.7 or above
Spring Boot for VMware GemFire
A Pivotal Commercial Maven Repo account (free)
GemFire 9.15.3+

If running on Tanzu Application Service

A VMware GemFire for TAS service instance on the Tanzu Application Service.

If running on Kubernetes

A VMware GemFire for Kubernetes Cluster.

For this example:
- Our namespace is notes-app
- Our GemFire cluster is notes-app-gemfire-cluster
Docker.
An image repository for the Session State Example (this example uses Docker Hub).

Where do we begin?

This example consists of a simple Spring Boot back end application and a React front end application that records user-provided notes, and associates them with the user’s session. If the user navigates away, and then returns to the site, their notes will still be available. The app also offers the ability to destroy the session - analogous to logging out of a website or closing the browser/tab.

The back end (in the src/main/java/sessionstate/ directory) handles all the session management and storage, and is the main focus of the example.

The front end (in the frontend/ directory) is provided to illustrate how a web app can interact with the session data. The example front end is written using the React framework, but clients can use any language or framework capable of interacting with a REST endpoint.

You can download the complete application from the VMware GemFire examples GitHub repository.

$ git clone https://github.com/gemfire/spring-for-gemfire-examples.git

Add the Spring Boot for VMware GemFire Dependency

The Spring Boot for VMware GemFire dependencies are available from the Pivotal Commercial Maven Repository. Access to the Pivotal Commercial Maven Repository is free and requires a one-time registration step to create an account.

After registering, you will receive a confirmation email. Follow the instruction in this email to activate your account.

Spring Boot for VMware GemFire requires users to add the GemFire repository to their projects.

Add the GemFire repository to your project:

Gradle Add the following to the repositories section of the build.gradle file:

repositories {
    mavenCentral()
    maven {
        credentials {
            username "$gemfireRepoUsername"
            password "$gemfireRepoPassword"
        }
        url = uri("https://commercial-repo.pivotal.io/data3/gemfire-release-repo/gemfire")
    }
}

Maven Add the following to the pom.xml file:

<repository>
    <id>gemfire-release-repo</id>
    <name>Pivotal GemFire Release Repository</name>
    <url>https://commercial-repo.pivotal.io/data3/gemfire-release-repo/gemfire</url>
</repository>

Add your Pivotal Commercial Maven Repository credentials.

Gradle

Add the following to the local (.gradle/gradle.properties) or project gradle.properties file. Replace YOUR_PIVOTAL_COMMERCIAL_MAVEN_REPO_USERNAME and YOUR_PIVOTAL_COMMERCIAL_MAVEN_REPO_PASSWORD with your Pivotal Commercial Maven Repository credentials.
```
gemfireRepoUsername=YOUR_PIVOTAL_COMMERCIAL_MAVEN_REPO_USERNAME
gemfireRepoPassword=YOUR_PIVOTAL_COMMERCIAL_MAVEN_REPO_PASSWORD
```
Maven Add the following to the .m2/settings.xml file. Replace MY-USERNAME@example and MY-DECRYPTED-PASSWORD with your Pivotal Commercial Maven Repository credentials.
```
<settings>
    <servers>
        <server>
            <id>gemfire-release-repo</id>
            <username>[email protected]</username>
            <password>MY-DECRYPTED-PASSWORD</password>
        </server>
    </servers>
</settings>
```

Add the Spring for VMware GemFire dependencies to your project:

Gradle

dependencies {
    implementation "com.vmware.gemfire:spring-boot-3.1-gemfire-10.0:1.0.0"
    implementation "com.vmware.gemfire:spring-boot-session3.1-gemfire-10.0:1.0.0"
  ...
}

Maven

<dependencies>
    <dependency>
        <groupId>com.vmware.gemfire</groupId>
        <artifactId>spring-boot-3.1-gemfire-10.0</artifactId>
        <version>1.0.0</version>
    </dependency>
    <dependency>
        <groupId>com.vmware.gemfire</groupId>
        <artifactId>spring-boot-session-3.1-gemfire-10.0</artifactId>
        <version>1.0.0</version>
    </dependency>
...
<dependencies>

Version

Make sure that the major.minor version of Spring Boot and GemFire you are using match the Spring Boot for VMware GemFire artifactId.

Add Spring Boot for VMware GemFire Annotations

The Spring Boot application will need the following annotations

@SpringBootApplication
@EnableClusterAware
public class SessionStateApplication {
  public static void main(String[] args) {
     SpringApplication.run(SessionStateApplication.class, args);
  }
}

@EnableClusterAware Allows the application to seamlessly switch between local-only (application running on local machine) and client/server (in a managed environment such as Tanzu Application Service).
This annotation transitively includes the @EnableClusterConfiguration annotation, which dynamically creates regions if they do not exist already. Note that the @EnableClusterConfiguration annotation will only create Regions, it will not delete or update existing regions.

The example Spring Boot application uses a @RestController that allows the front end application to interact with a REST API to read, update, and destroy session data (notes in this example application).

@RestController
public class SessionController {
    @GetMapping("/getSessionNotes")
    public List<String> getSessionNotes(HttpServletRequest request) {
        List<String> notes = (List<String>) request.getSession().getAttribute("NOTES");
        return notes;
    }

    @PostMapping("/addSessionNote")
    public void addSessionNote(@RequestBody String note, HttpServletRequest request) {
        List<String> notes = (List<String>) request.getSession().getAttribute("NOTES");

        if (notes == null) {
            notes = new ArrayList<>();
        }

        notes.add(note);
        request.getSession().setAttribute("NOTES", notes);
    }

    @PostMapping("/invalidateSession")
    public void invalidateSession(HttpServletRequest request) {
        request.getSession(false).invalidate();
    }
}

Accessing and Displaying Session Data from the Front End

The front end web application accesses the back end REST API using standard GET and POST HTTP methods. See frontend/src/sessionService.js

import axios from 'axios';

const instance = axios.create();

const addNote = async (note) => {
   await instance.post('/addSessionNote', note,{
       headers: { 'Content-Type': 'text/plain' }
   });
};

const getNotes = async () => {
   const response = await instance.get('/getSessionNotes');
   return response.data;
};

const destroySession = async () => {
   await instance.post('/invalidateSession');
};

Testing Tip

When unit testing during development, to verify caching, @Autowire a CacheManager and use it to confirm that session data is properly stored in the cache.

The @DirtiesContext is used to destroy the test region and its data after the test is run. This prevents interference with other tests.

@RunWith(SpringRunner.class)
@SpringBootTest(classes = SessionStateApplication.class)
@AutoConfigureMockMvc
public class SessionControllerTest {
   @Autowired
   MockMvc mockMvc;

   @Autowired
   CacheManager cacheManager;

   static String NOTE1 = "Nothing More Than Memories";

...

   @Test
   @DirtiesContext
   public void addSessionNote_should_addNoteToSessionInCache() throws Exception {
       MvcResult mvcResult = mockMvc.perform(post("/addSessionNote")
               .content(NOTE1))
               .andExpect(status().isOk())
               .andReturn();

       String encodedSessionUUID = mvcResult.getResponse().getCookie("SESSION").getValue();

       List<String> notesList = getNotesForSessionInCache(encodedSessionUUID);

       assertEquals(NOTE1, (notesList.get(0)));
   }
  ...

Run the App Locally

Navigate to the root of the project in a command line and run the Spring Boot run command.

Start a VMware GemFire cluster

Follow the instructions in the Getting Started Locally guide to start a small GemFire cluster on your local machine.

Build the App

Once you have a cluster running, in a new terminal, navigate to the root of the project and build the app.

Gradle

./gradlew clean build

Maven

 mvn clean package

Start the Spring Boot App

One the application has finished building, start the Spring Boot application.

Gradle

./gradlew bootRun

Maven

mvn spring-boot:run

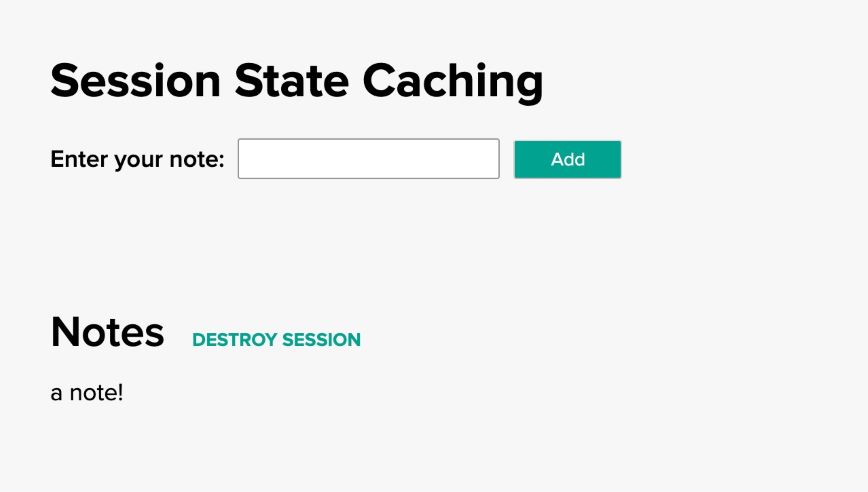

When the app is running, open a browser and go to http://localhost:8080.

The “Enter your note:” form can be used to enter notes.
The “DESTROY SESSION” button can be used to clear the session data and delete the notes.

Run the App on the Tanzu Application Service

VMware GemFire Service Instance

To deploy the application to the Tanzu Application Service (TAS) make sure you have created a VMware GemFire service instance.

Update the manifest.yaml file

In the project root directory, open the manifest.yml file and replace <SERVICE-INSTANCE-NAME> with the name of your service instance.

Push the app to your TAS space

Once the VMware GemFire service instance is running (you can check the status by running the cf services command), push your app to TAS with cf push.

After the app has successfully been pushed, in the output find the route. Then open a browser and copy and paste the route into the browser.

Run the App on Kubernetes

VMware GemFire for Kubernetes Cluster

To deploy the Session State Example application on Kubernetes make sure you have created a VMware GemFire cluster on Kubernetes using the namespace and GemFire cluster names below.

For this example:

Our namespace is notes-app
Our GemFire cluster is notes-app-gemfire-cluster

Edit the `application.properties` file

Navigate to the application directory.
Open the application.properties.
Uncomment the two listed properties.
Replace the value for spring.data.gemfire.pool.locators: with your VMware GemFire cluster information, for each locator (in this example we only have one locator). The information will follow the form:
```
[GEMFIRE-CLUSTER-NAME]-locator-[LOCATOR-NUMBER].[GEMFIRE-CLUSTER-NAME]-locator.[NAMESPACE-NAME][10334]
```
For our example the value looks like this:
```
notes-app-gemfire-cluster-locator-0.notes-app-gemfire-cluster-locator.notes-app[10334]
```
- Replace notes-app-gemfire-cluster with the name of your GemFire cluster if different.
- Replace notes-app with your namespace if different.
Replace the value for spring.data.gemfire.management.http.host: with your VMware GemFire cluster information. This will allow Spring Boot for VMware GemFire to push your initial cluster configuration to your VMware GemFire cluster. The information follows a similar form as above:
```
[GEMFIRE-CLUSTER-NAME]-locator-[LOCATOR-NUMBER].[GEMFIRE-CLUSTER-NAME]-locator.[NAMESPACE-NAME]
```
For our example the value looks like this:
```
 notes-app-gemfire-cluster-locator-0.notes-app-gemfire-cluster-locator.notes-app
```
- Replace notes-app-gemfire-cluster with the name of your GemFire cluster if different.
- Replace notes-app with your namespace if different.

Build a Docker Image with Gradle or Maven

Starting with Spring Boot 2.3, you can now customize and create an OCI image using Spring Boot. In this example we’re using the Gradle - packaging OCI images option. If you are using Maven check out the instructions found here.

In a terminal, navigate to the application directory.
Build the application with ./gradlew clean build -x test. We skip the tests in this build because when the Spring properties are active, the tests use these properties to find a GemFire cluster and will fail as there’s no cluster running locally at that location.
Open the build.gradle file and update the bootBuildImage section, with your Docker repository username. This will build an image with the name docker.io/[YOUR DOCKER USERNAME]/notes-app:0.0.1-SNAPSHOT.
Build the image with ./gradlew bootBuildImage

Push your Docker Image to Docker Hub

For this example, we’re using Docker Hub as our registry. This will create a repository on Docker Hub called notes-app and push the image we created into that repository.

In a terminal

Login to your Docker account
Run the docker push [IMAGE NAME HERE]. For this example it should be similar to this
```
docker push docker.io/[YOUR DOCKER USERNAME]/notes-app:0.0.1-SNAPSHOT
```

Create a deployment in your Kubernetes cluster

Create a Kubernetes deployment for your Notes app. This will create a deployment, replicaset, and pod using the image we created above.

  kubectl -n notes-app create deployment notes-app-deployment --image=docker.io/[YOUR DOCKER USERNAME]/notes-app:0.0.1-SNAPSHOT

Replace notes-app with your namespace if different.

If successful you should see deployment.apps/notes-app-deployment created

Create a LoadBalancer to access the app

In order to access the Notes app from a browser, we need to expose the deployment.

kubectl -n notes-app expose deployment/notes-app-deployment --type="LoadBalancer" --port=80 --target-port=8080

Replace notes-app with your namespace if different.

If you’re trying this locally with MiniKube, you will need to replace LoadBalancer with NodePort.

Access the Notes App

Once the Load Balancer has been created, you can now access the Notes app using the External IP on the LoadBalancer service.

kubectl -n notes-app get services

Replace notes-app with your namespace if different.

This should output something similar to (your locator and server names may be different).

NAME                        TYPE           CLUSTER-IP    EXTERNAL-IP      PORT(S)              AGE
notes-app-cluster-locator   ClusterIP      None          <none>           10334/TCP,4321/TCP   26h
notes-app-cluster-server    ClusterIP      None          <none>           40404/TCP,4321/TCP   26h
notes-app-deployment        LoadBalancer   10.0.113.16   52.170.169.174   80:30109/TCP         26h

In your browser, go to the EXTERNAL-IP of the notes-app-deployment and you should see a working Notes app.

Confirm your app is connected to your VMware GemFire cluster

Open a terminal
Start gfsh for kubernetes
```
kubectl -n notes-app exec -it notes-app-gemfire-cluster-locator-0 -- gfsh
```
- Replace notes-app with the name of your namespace, if it’s different.
- Replace notes-app-gemfire-cluster with the name of your VMware GemFire cluster if it’s different.

Once you see that GFSH has started, connect to your cluster with the connect command

connect --locator=notes-app-gemfire-cluster-locator-0.notes-app-gemfire-cluster-locator.notes-app[10334]

Once connected run the list regions command
```
list regions
```

You should see something similar to

  List of regions
  ------------------
  ClusteredSpringSessions

This shows that the Spring Boot for VMware GemFire app has connected to the VMware GemFire cluster and pushed the initial Session configuration, including a region called ClusteredSpringSessions), to the cluster.

If the ClusteredSpringSessions region IS NOT listed, the first item to check is the application.properties file. Confirm that the spring data property values are set correctly. If you need to update them, make sure you also increment your version number of your image in the build.gradle file. This will force Kubernetes to pull the new image (as opposed to using a cached version of the image).

Congratulations! You have now deployed a Spring Boot for VMware GemFire app that implements Session State Caching

On This Page

Session State Caching

When should I use a session state cache?

How does session state caching work?

What you’ll need

Where do we begin?

Add the Spring Boot for VMware GemFire Dependency

Version

Add Spring Boot for VMware GemFire Annotations

Accessing and Displaying Session Data from the Front End

Testing Tip

Run the App Locally

Start a VMware GemFire cluster

Build the App

Start the Spring Boot App

Run the App on the Tanzu Application Service

VMware GemFire Service Instance

Update the manifest.yaml file

Push the app to your TAS space

Run the App on Kubernetes

VMware GemFire for Kubernetes Cluster

Edit the application.properties file

Build a Docker Image with Gradle or Maven

Push your Docker Image to Docker Hub

Create a deployment in your Kubernetes cluster

Create a LoadBalancer to access the app

Access the Notes App

Confirm your app is connected to your VMware GemFire cluster

Edit the `application.properties` file
